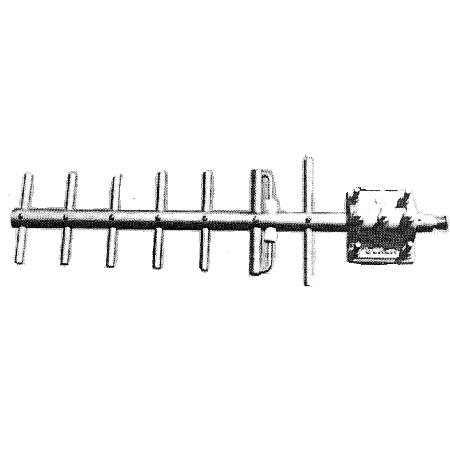

890-960 MHz 12 dBi 7 Element Yagi Antenna

  • TESSCO SKU: 15124
  • QTY/UOM: 1 EACH
  • UPC: 91752-004
  • MFG PART #: TY-900

KATHREIN TY-900 broadband yagi antenna is specifically designed for professional fixed station applications in the 890 - 960 MHz frequency range. This 7-element yagi antenna has a gain of 12.15 dBi and a maximum power input of 100 watts The polarization can be either horizontal or vertical. Order mounting hardware for mast of 1.25 to 2.375 inch OD separately.

This broadband antenna will assure long service life in severe environmental conditions. The antenna is RoHS compliant.

Technical Specs

  • Jumper Included
    No
  • Qty/ Uom
    1 Each
  • Tuned Frequency (MHz)
    N/A
  • Gain dBi
    12 dBi
  • Connector Placement
    Center
  • Horizontal Beamwidth
    48 deg
  • Maximum Rated Wind Velocity
    150 mile/h
  • Item Length
    23 in
  • Item Weight
    3.25 lb
  • Polarization
    Linear
  • Lightning Protection
    DC Ground
  • Item Height
    7 in
  • Gain dBd
    9.9 dBd
  • Specific Frequency
    890-960 MHz
  • Type of Hardware Included
    Mast Mount (1.25"-2.375" OD)
  • Vertical Beamwidth
    40 deg
  • RF Connectors
    N Female
  • Maximum VSWR
    1.5:1
  • Manufacturer
    Kathrein Broadcast USA Inc
  • Maximum Power
    100 W
