SAF North America LLC

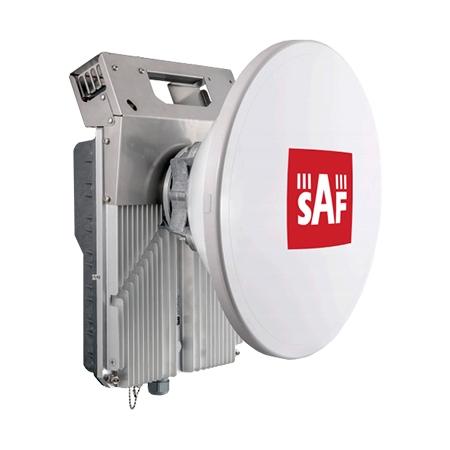

Integra-X 11 GHz, DC, USB, GE RJ-45 PoE
TESSCO SKU: 275312
UPC: 275312
QTY/UOM: 1/each

SAF NORTH AMERICA's D11XSR05LA integra-X dual transceiver XPIC capable full-outdoor radio. brbr11 GHz, DC, USB, GE RJ45 PoE, 2 SFP+, 5 – 112 MHz, 4 – 4096 QAM, 490 MHz, 05LA brbr The integra-X series features: brbr Highest spectral efficiency supports up to 4096QAM Highest capacity: up to 1.5 Gbps in 2x 80 MHz channels and 3 Gbps in 4+0 configuration. Header compression Best system gain: highest TX power +31 dBm at 4QAM and +26 dBm at 4096QAM (!) provided with adaptive digital pre-distortion Best link availability with advanced RF features like Hitless ACM, ATPC and variable TX power improve available system gain even further! Traffic port flexibility: 2x 10 Gbps SFP+ ports and 1 Gbps RJ45 Channel flexibility with software configurable 2+0 XPIC, 2+0 ACDP Fully integrated: built-in OMT for 2+0, no interface hardware required and fast installation, minimal number of SKU’s Instant on-site diagnostics LED: visual LED services port for indicating power, synchronization and RSL! Redundant power input: two inputs for DC power Advanced ethernet: built-in carrier ethernet 10 gigabit switch with 50 Gbps switching capacity SyncE, QoS, QinQ, Link State Propagation, jumbo frame support, large ethernet buffers 2 MB integrated + 100 MB for jumbo frames Marine grade materials: non-corrosive solid materials (without die-casted porous enclosure) Industry leading 5-year warranty Simple BoM, without sophisticated licenses keys, SKU’s

Technical Specs
