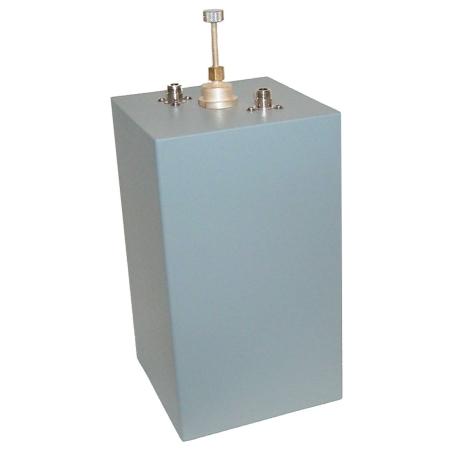

*806-894 Bandpass Cavity

EMR 806-894 MHz bandpass cavity resonat. 200 watts power input, 1 dB insert. loss nominal 1 dB coupling loops, N/fem conn. *Factory tune. 7"x 7"x 12".

EMR Band Pass Cavities are 1/4 wavelength, high Q cavity filters with excellent selectivity.  Bandpass cavities reject frequencies outside of a narrow pass band. These cavities may be factory tuned to specific frequency and are field tunable. Multiple cavities may be connected for greater selectivity with minimal insertion loss and wider pass bandwidths.
