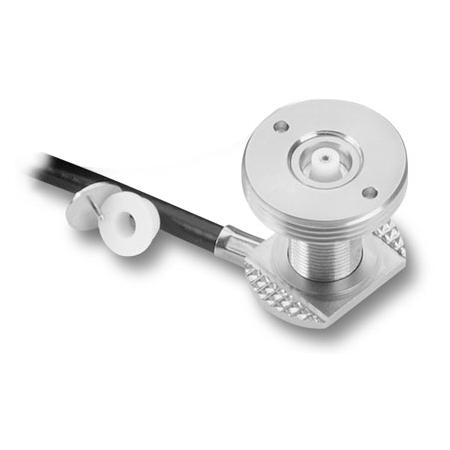

0-6000 MHz, Thick Mount, RG58A/U, No Connector

  • TESSCO SKU: 441739
  • QTY/UOM: 1 EACH
  • UPC: 646444417396
  • MFG PART #: NMOKHFDSTHK

The Larsen NMOKHFDSTHK vehicle roof mount antenna installation hardware kit is a special application NMO mount for high frequency Motorola-style mobile antennas, 0 – 6000 MHz in thick surfaces. The center pin is removable to function as a standard or high-frequency mount. This nickel, copper, and zinc alloy permanent mount are for a 3/4 in hole in mounting surfaces up to 1/2 in thick.

The Larsen mobile antenna mount includes 17 ft of RG-58A/U dual shield cable. Order connector separately. Thread size is 1 1/8 in-18.

Related Media

Technical Specs

  • Cable Length
    17 ft
  • Specific Frequency
    0-6000 MHz
  • Cable Type
    RG-58A/U
  • Thread Size
    1-1/8-18
  • RF Connector
    No Connector
  • Qty/ Uom
    1 Each
  • Description
    0-6 GHz 3/4" hole mount for surfaces up to 1/2" thick. Features a fully weatherized cable interface for a true 50 ohm impedance match. Center pin removes to convert from a standard to a high frequency mount.
  • Manufacturer
    Pulse / Larsen Antennas
