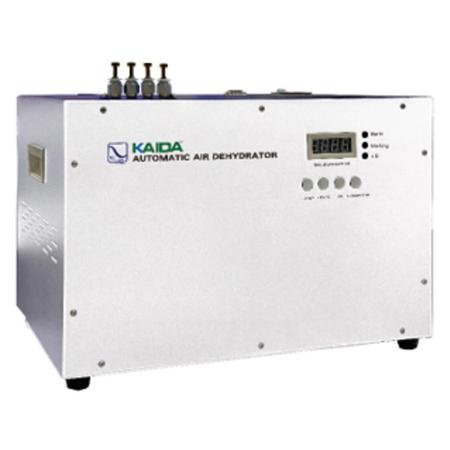

0.78 SCFM, 1300 l/h 220 VAC Automatic Dehydrator, NMS
RFS Technologies' 0.78 SCFM, 1300 l/h 220 VAC automatic dehydrator. This 0.2 to 7 PSI field adjustable pressure dehydrator is specifically engineered. It is engineered to pressurize elliptical waveguides, coaxial cables, rigid transmission lines, and antenna systems reliably. By utilizing dry pressurized air in the distribution system, condensation is prevented, ensuring optimal system performance.
It features high activated aluminum oxide to absorb moisture, along with a dual chamber system that delivers pressurized dry air while automatically regenerating the desiccant by purging collected moisture to the atmosphere. This innovative design eliminates the need for desiccant replacement or manual reactivation, making the dehydrators perfect for unattended operation, even in remote locations. With proper installation, operation, and maintenance, these units can provide years of trouble-free service.
Benefits:
- High flow rate and capacity to support large size telecom, medium size broadcasting and radar applications: 0.78SCFM or 22L/min (+/-10% at 25°C)
- Pre-programed in the factory to minimize installation time on the site
- High pressure, low pressure, excess run and dew point alarms come as standard configuration
- 4 gas outlet ports with supplied tubing support up to 4 transmission lines
- Unique leakage detection function aids in inspecting the airtightness of the system
- Compact 2U height enclosure with supplied brackets supports versatile mounting including desktop and rack mount
- Can be managed by network management system using SNMP and other popular protocols
