RFS

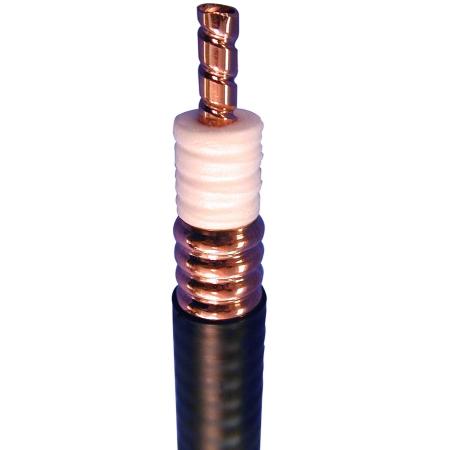

1-1/4" CELLFLEX Premium Attentuation Cable

  • TESSCO SKU: 330131
  • QTY/UOM: 1 FOOT
  • UPC: 888063301315
  • MFG PART #: UCF114-50JA

RFS's UCF114-50JA 1 1/4 in foam CELLFLEX series "A" cable. Annular corrugated copper outer conductor, corrugated copper tube center conductor.

Related Media

Technical Specs

  • Manufacturer
    RFS
  • Average Power @ 50 MHz
    17.9 kW
  • Average Power @ 450 MHz
    5.53 kW
  • Mid-Span Strip Tool
    424063
  • Minimum Bending Radius
    10 in
  • Additional Notes
    Improved attentuation and VSWR over previous version
  • Peak Power
    178 kW
  • Attenuation/100 ft @ 50 MHz
    0.189 dB
  • Cable Weight Per Foot
    0.55 lb
  • Average Power @ 960 MHz
    3.6 kW
  • DC Resistance (ctr/shld) Ohms
    .67/.19
  • Bending Moment
    25.6 lb-ft
  • Flat Plate Crush Strength
    140 PSI
  • DC Breakdown Voltage
    9 kV
  • Attenuation/100 ft @ 150 MHz
    0.336 dB
  • Average Power @ 30 MHz
    23.3 kW
  • Tensile Strength
    650 lb
  • Inductance
    0.056 ┬ÁH/ft
  • Capacitance Per Foot
    22.9 pF
  • Strip Tool
    488613
  • Average Power @ 894 MHz
    3.75 kW
  • Qty/ Uom
    1 Foot
  • VOP
    89 %
  • Attenuation/100 ft @ 1700 MHz
    1.31 dB
  • Average Power @ 800 MHz
    4 kW
  • Attenuation/100 ft @ 960 MHz
    0.935 dB
  • RF Impedance
    50 Ohms
  • Outer Conductor Material
    Copper
  • Attenuation/100 ft @ 824 MHz
    0.856 dB
  • Attenuation/100 ft @ 450 MHz
    0.61 dB
  • Diameter Over Jacket
    1.54 in
  • Attenuation/100 ft @ 894 MHz
    0.897 dB
  • Attenuation/100 ft @ 30 MHz
    0.145 dB
  • Inner Conductor
    Copper
  • Attenuation/100 ft @ 2.0 GHz
    1.44 dB
