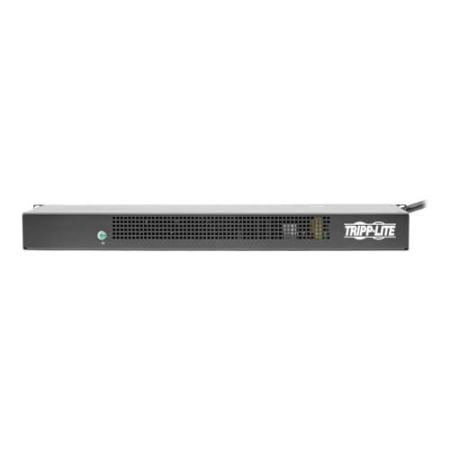

1.9kW Single-Phase Switched PDU, LX Interface

  • TESSCO SKU: 280708
  • QTY/UOM: 1 EACH
  • UPC: 646444982337
  • MFG PART #: PDUMH20NET2LX

PDUMH20NET2LX Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption.The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

Technical Specs

  • Cord Length
    12 ft
  • AC Outlet Type
    NEMA 5-15R
  • Qty/ Uom
    1 Each
  • AC Input Voltage Range
    120-240 V
  • Manufacturer
    Tripp Lite
  • AC Output Voltage
    120 V
  • Number of AC Outlets
    8
  • AC Phases
    Single-Phase
  • AC Input Voltage
    120 V
