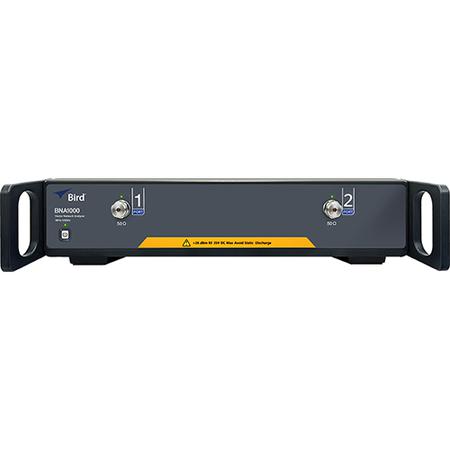

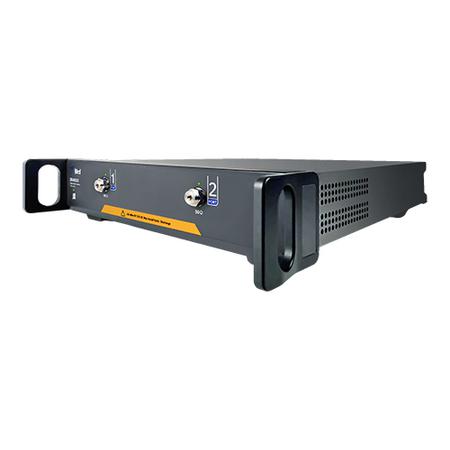

1 MHz - 20 GHz 2-Port Modular Vector Network Analyzer

Bird's two (2) port modular vector network analyzer (VNA). This VNA uniquely combines the detailed analysis capabilities of a benchtop unit with the adaptability required for diverse manufacturing and R&D environments.

It exceeds the constraints of typical lab-focused analyzers and the restricted capabilities of portable models. The BNA1000 offers a broad dynamic range and rapid measurement speed. This ensures a seamless transition from design to production, enhancing both innovation and efficiency.

Key Performance Specifications:

• Two (2) ports
• 1 MHz - 20 GHz frequency range
• > 125 dB dynamic range
• Up to +10 dBm output power
• 0.008 dB RMS trace noise
• 70 us/point fast measurement speed
• User interface software included

Applications:

• Manufacturing Test
• Passive/Active Component Characterization
• RF and Microwave Product Design
• Filter Design and Testing
• Fault Location
• Antenna Tuning
• Quality Control and Incoming Inspection
