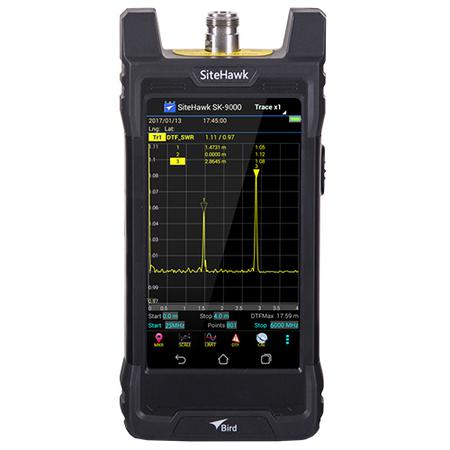

1 MHz - 9 GHz Handheld Cable and Antenna Analyzer

Bird's handheld cable and antenna analyzer provides critical coverage with a wide 1 MHz - 9 GHz frequency range. With the addition of increased coverage to 9 GHz, SiteHawk is capable of monitoring the C-Band (4 - 8 GHz) satellite communications and some X-Band radar frequency sub-bands.

This versatile product benefits government, military, and public sector users.

Features:

• Test RF cables and antennas at the frequency of operation
• Locate RF cable, connector and antenna problems at the source
• Frequency Domain Reflectometry (FDR) measurement method results in a highly reliable assessment of the health of critical components in your system
  • Ultimately providing a “heads-up” before a failure occurs
• Fault location or DTF mode plots VSWR or return loss levels at each distance point along the cable and antenna system length
• Cable loss function measures insertion loss of the cable system over a given frequency range
• OTG USB communication port for connection to Bird power sensors, storage devices, and battery charging

Applications:

• Cellular Networks 3G, 5G (2.4, 4.2 GHz and 600, 850 MHz)
• PCS/DCS, CDMA, GSM and LTE Protocols
• Broadcast
• Paging
• Government
• Tactical Military
• Microwave
• Public Safety
• Trunking, TETRA
• Network Coverage WLAN, WLL (802.11)
• Semiconductor calibration load/RF cable test
