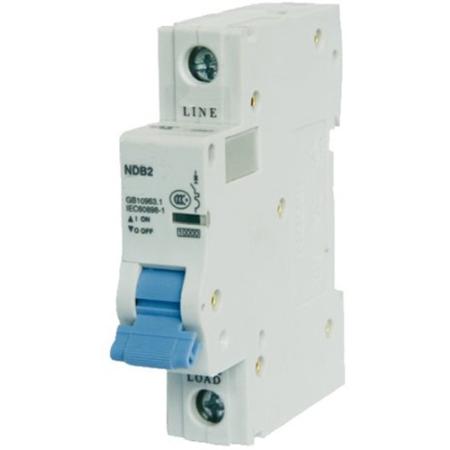

1-Pole 125VDC 10A Circuit Breaker

  • TESSCO SKU: 585534
  • QTY/UOM: 1 EACH
  • UPC: 729198169138
  • MFG PART #: NDB2Z-63C10-1

CARBER POWER TECHNOLOGIES' one-pole 125 VDC, 10 A circuit breaker. The NDB2Z series of UL1077 recognized circuit breakers are rated for use in DC circuits where supplemental protection is required. The NDB2Z series is available in one and two-pole versions with current ratings ranging from 1 – 63 A. Either the B or the C trip curve can be selected based on your application requirements.

Features: UL1077 recognized 300% factory tested Single and two-pole versions Current ratings from 1 – 63 A Convenient screw clamp wire terminations Shock proof connections Visual indicator, red - on Various accessories available Standard 35 mm DIN rail mounting RoHS compliant 10 A

Related Media

Technical Specs

  • Circuit Breaker Mount
    Screw Mount
  • Manufacturer
    Carber Power Technologies
  • Qty/ Uom
    1 Each
  • Voltage Type
    DC
  • Amps
    10 A
  • Number of Poles
    1
  • Maximum Voltage
    125 V
