10' 5.8kW Single-Phase Metered PDU, 208/240V TAA

  • TESSCO SKU: 550917
  • QTY/UOM: 1 EACH
  • UPC: 037332182807
  • MFG PART #: PDUMV30HV2

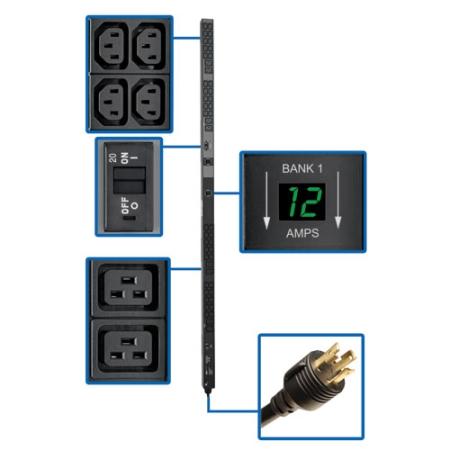

PDUMV30HV2 The 70-inch (178-centimeter) PDUMV30HV2 30A 208/240V 5.8kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers. Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank’s real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.An ideal PDU for server rooms, network closets and data centers, the PDUMV30HV2’s all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The NEMA L6-30P input plug with 10-foot (3-meter) cord connects to your facility’s compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components’ plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.

Technical Specs

  • Cord Length
    10 ft
  • AC Outlet Type
    NEMA 5-15R
  • Qty/ Uom
    1 Each
  • AC Input Voltage Range
    120-240 V
  • Manufacturer
    Tripp Lite
  • AC Output Voltage
    208 V, 240 V
  • Number of AC Outlets
    16
  • AC Phases
    Single-Phase
  • AC Input Voltage
    120 V
