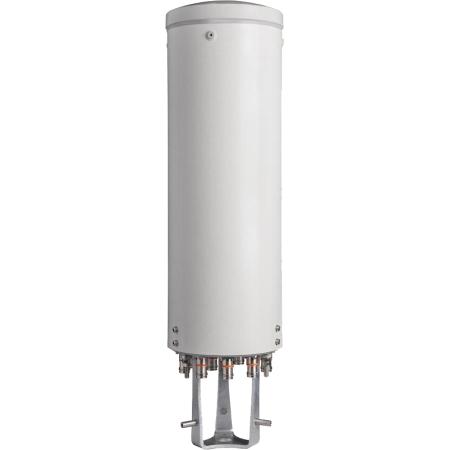

10-Port Small Cell Antenna, 360° Horizontal BW

  • TESSCO SKU: 250955
  • QTY/UOM: 1 EACH
  • UPC: 729198031770
  • MFG PART #: VVSSP-360S-F

COMMSCOPE's VVSSP-36S-F ten-port small cell antenna, four (4) 1695 – 2690, four (4) 3400 – 3800, and two (2) 5150 – 5925 MHz, 360 deg. horizontal beamwidth, fixed tilt

Related Media

Technical Specs

  • Item Length
    23.6 in
  • Item Weight
    15.4 lb
  • Electrical Downtilt
    Fixed
  • Item Height
    7.9 in
  • Polarization
    +/- 45 Degrees
  • Maximum Power
    125 W, 125 W, 125 W, 50 W, 10 W
  • Maximum VSWR
    1.5:1
  • Gain dBi
    9.3 dBi, 10.3 dBi, 10.6 dBi, 8.5 dBi, 5.1 dBi
  • Manufacturer
    CommScope
  • Horizontal Beamwidth
    360 deg
  • Specific Frequency
    5150-5925 MHz, 3400-3800 MHz, 2300-2690 MHz, 1920-2180 MHz, 1695-1920 MHz
  • Qty/ Uom
    1 Each
  • RF Connectors
    4.3-10 Female
