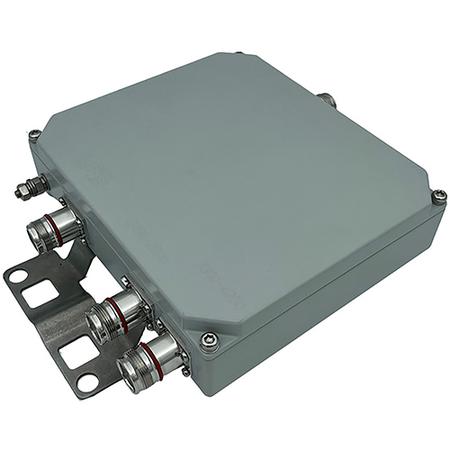

100 - 250 W -161 dBc Dual Triplexer with 4.3-10 Female Connectors, IP67

Microlab's triplexer allows combination and splitting of signals in 617 - 960 or 1695 - 2360, 2496 - 2690, and 3300 - 4200 MHz wireless bands. It allows efficient combining or splitting of the standard cellular bands and shared bands like CBRS and C-band for use in DAS or D-RAN.

To minimize band inter-reaction, the inputs are well isolated and have minimal insertion loss over their respective frequency bands. Attention to mechanical design ensures guaranteed low passive inter modulation.

Features:

• Combine 600-WCS, 2.5 BRS, and C-Band
  • 3300 - 4200 MHz
• 43 dB input isolation
• High input power
  • 100 - 250 W
• Guaranteed Low PIM
  • -161 dBc
• Minimal RF insertion loss
• 4.3-10 Female connectors
• RoHS compliant

Notes:

• The mounting bracket is included
• Dual mounted configuration for 2x2 MIMO applications is available as this part number BK-3009EW
