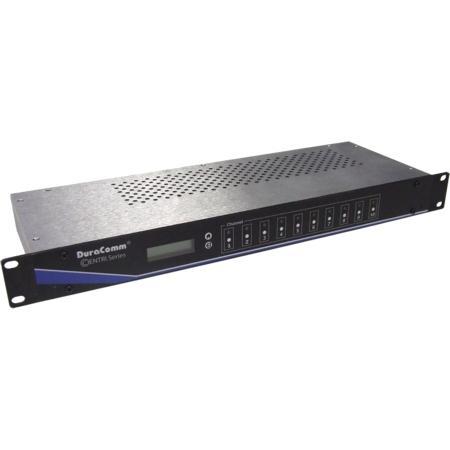

100 Amp E-Fuse DC Power Distribution Panel, 10 Load Circuits, 1RU

DuraComm's E-Fuse DC power distribution panel provides up to 10 load circuits. The circuits are protected by electronic fuses with remote monitoring of voltage and current for each position, remote on/off control, remote fuse reset, and email alerts. Each circuit can be user adjusted up to a maximum of 30 amps.

Remote monitoring is available through a standard Ethernet internet connection. Heavy-duty DC input connectors provide strong 1/4-inch studs that accept up to 100 amps from a single power supply. Convenient pluggable Phoenix-style connector block output terminals provide fast, simplified installation, while all inputs and outputs are isolated.

Panel Depth:

• 11 inches

Notes:

• Integrates with DuraComm’s Site Centri unit to provide SNMP alarms (in development) and monitoring
• Not suitable for positive ground applications
  • Example: -48 V systems
