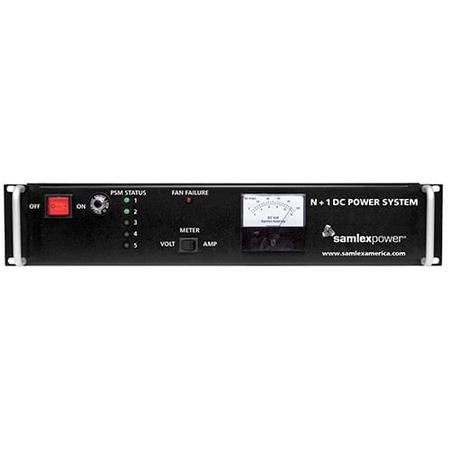

100 Amp Rackmount Power Supply with N+1 and Battery Backup

Samlex's rackmount power supply with N+1 and battery backup. This modular 19-inch rack mount AC/DC power supply can provide up to 100 Amps of continuous power. The output DC voltage is highly regulated at 13.8 Volts (105-125 Volts, 50/60 Hz AC input). Output power can be expanded in steps of 20 Amps (up-to 100 Amps maximum).

An external battery can be connected for backup and a section of the output current (up to 8 Amps) is diverted to charge the batteries when in state of discharge using the built-in battery backup module. The battery supplies the DC load on loss of utility power.

Features:

• Provides N+1 redundancy
  • Two (2) or more running in parallel
• Voltage/Ampere meter
• Module status LEDs, fault indicator LEDs, and fault alarm
• Highly regulated output voltage
• Short circuit protection and overload current
• 25 pin D-sub connector for remote monitoring system

Applications:

• Any critical power supply application
• Telecommunications systems
• Mobile sound/audio displays
• GPS receivers Security systems
• CCTV systems
