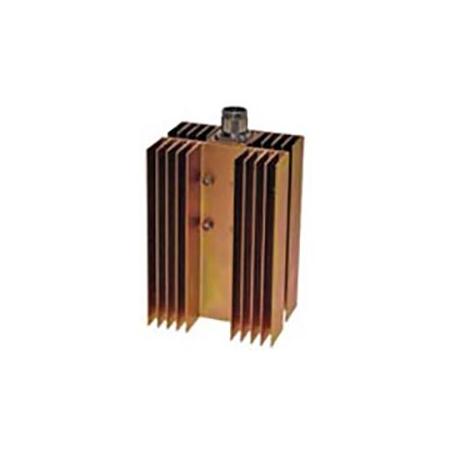

100 Watt Precision RF Load 50 Ohm

  • TESSCO SKU: 583815
  • UPC: 729198917784
  • MFG PART #: 82-01-15

Bird Technologies 82-01-15 82 Series 100 Watt Precision RF Load.

Bird Technologies Group, TX RX Systems brand, natural convection, Air-Cooled Dry RF Loads are designed as precision, heavy-duty 50-ohm terminations for isolators and specialized hybrid combining applications operating up to 1000 MHz. These loads have power density factors (ratio of rated power to heatsink surface area) that are among the lowest in the industry which means lower heatsink surface temperatures for a particular power dissipation. They also have excellent return loss characteristics over their entire operating range, making them ideal for use in test as well as operational applications.

Precision 50-ohm loads for all termination applications High heatsink surface area for lower heatsink surface temperatures 30 dB return loss up to 1000 MHz

Technical Specs

  • Maximum VSWR
  • Maximum Power Input
    100 W
  • Load Coolant Type
  • Qty/ Uom
    1 Each
  • Frequency Range
    5-960 MHz
  • Manufacturer
    Bird Technologies
