Microlab/FXR

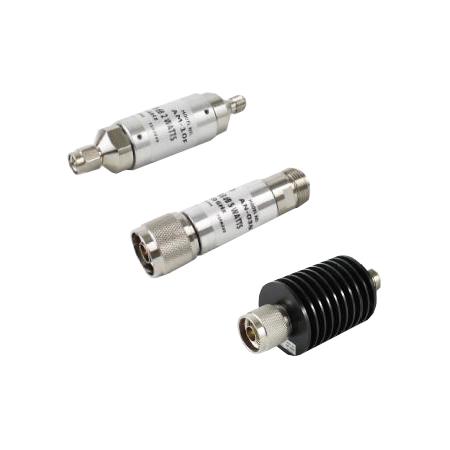

10dB Resistive Atten DC-3GHz 5W Type N n/a PIM ind

  • TESSCO SKU: 566066
  • QTY/UOM: 1 EACH
  • UPC: 729198330491
  • MFG PART #: AN-10N

MICROLAB's coaxial attenuators are for wireless applications covering DC to 3 GHz frequency range. They are designed for standard commercial bandwidth networks with range from 2 W to a full 25 W average bidirectional power rating. The attenuators are constructed of resistive elements in a conventional series circuit. Units are exceptionally rugged, and negligibly affected by normal ambient temperature and humidity changes.

Related Media

Technical Specs

  • Maximum Power
    5 W
  • Attenuation
    10 dB
  • Manufacturer
    Microlab/FXR
  • Frequency Range
    0-3 GHz
  • Maximum VSWR
    1.25:1
  • Qty/ Uom
    1 Each
  • Attenuation Steps
    0 dB
