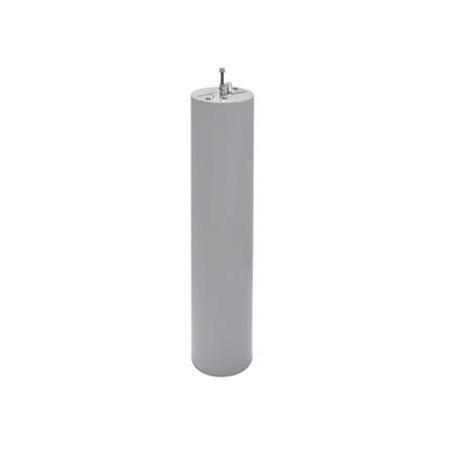

118-148 MHz Bandpass Cavity

  • TESSCO SKU: 502100
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: TWPC-1405-1

The Telewave TWPC-1405-1 is a 118 – 148 MHz 5 in diameter, 1/4 wavelength, high "Q" bandpass cavity filters with superior selectivity. Bandpass cavities reject all frequencies outside a narrow passband. These cavities reduce transmitter sideband noise, and also protect receivers against desensitization.

Related Media

Technical Specs

  • Number of Cavities
    1
  • RF Connectors
    N Female
  • Cavity Size
    5 in
  • Insertion Loss Range
    0.3-2.0 dB
  • Maximum Power Input
    350 W
  • Maximum VSWR
    1.5:1
  • Manufacturer
    Telewave, Inc.
  • Filter Type
    Bandpass
  • Tuning Method
    Factory Tune
  • Qty/ Uom
    1 Each
  • Frequency Range
    118-148 MHz
