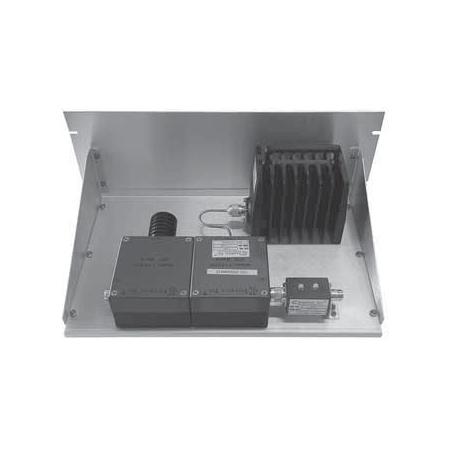

118-174 Intermod Panel

  • TESSCO SKU: 60556
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: TS150PB2

TELEWAVE's intermodulation suppression panels provide a simple, affordable, high-performance solution for cleaning up interference at congested radio sites, when a full combining system may not be cost effective. In addition to controlling transmitter intermodulation, IM Panels also greatly reduce transmitter maintenance and expensive repairs by providing a constant 50 Ohm load, protecting the transmitter from opens, shorts, or other faults in the antenna system. Telewave IM Panels do not rely on any cables or other lossy interconnections, other than to the transmit chain. Each standard or custom panel includes one or more isolators with appropriate terminations, and a low-pass filter. The TS150P2 is a 148 – 172 MHz is a 300 W panel with a 100 W second stage termination.

Related Media

Technical Specs

  • Item Height
    8.75 in
  • Frequency Range
    118-174 MHz
  • Nominal Insertion Loss
    0.7 dB
  • Qty/ Uom
    1 Each
  • Tuning Method
    Factory Tune
  • Maximum Power Input
    300 W
  • Maximum VSWR
    1.3:1
  • Manufacturer
    Telewave, Inc.
  • RF Connectors
    N Female
  • Minimum Isolation
    42 dB
