DuraComm Corporation

11A Power Supply, Motorola

  • TESSCO SKU: 201323
  • QTY/UOM: 1 EACH
  • UPC: 888063334399
  • MFG PART #: LPX-14N

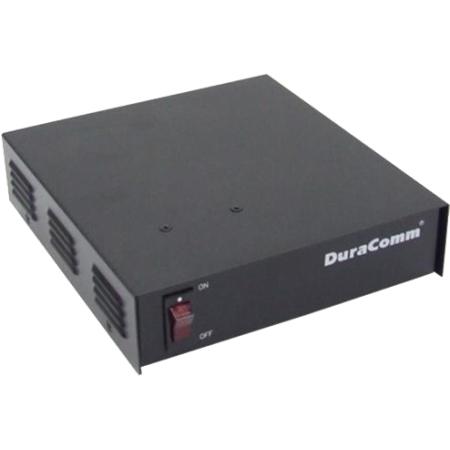

The DuraComm LPX-14N low profile power supply with SAE power cord for Motorola and other radios features state-of-the-art switch mode technology. The switching power supply internally selects 110 or 220 VAC input and provides 11 amps continuous or 14 amps intermittent current. Output is 13.8 VDC. This low profile power supply includes a 2 conductor SAE connector on a 3 foot DC output cord (13.8 VDC) for use with Motorola iDEN and other mobile radios. The desktop power supply is UL approved, highly efficient, and produces no heat. The DuraComm low profile power supply with low noise and low ripple is designed for today's demanding communications industry.

Technical Specs

  • Maximum Continuous Amperage
    11 A
  • AC Input Voltage
    220 V, 110 V
  • AC Input Voltage Range
    90-264 V
  • Ripple Voltage
    15 mV
  • Description
    DuraComm low profile power supplies feature state of the art Switch Mode Technology. Low noise, low ripple (less than 15mv @ full load),it is designed for today's demanding communications industry. Highly efficient and produces no heat. LP18 and 25 have low noise fans. Internallyselected 110/220 VAC input. Mobile radio size footprint. 1.75H x 7W x 7.5D
  • Fold-Back Protection
    Yes
  • Maximum Intermittent Amperage
    14 A
  • Item Width
    7 in
  • DC Output Voltage
    13.8 V
  • Nominal DC Output Voltage
    12 V
  • Qty/ Uom
    1 Each
  • Item Height
    1.75 in
  • Power Cord
    3 conductor
  • Manufacturer
    DuraComm Corporation
  • Crowbar Protection
    No
