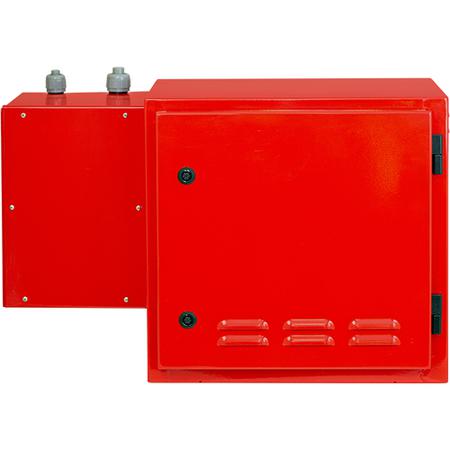

12/24-Hour Battery Backup Unit, NFPA Compliant

Westell's 12/24-hour Battery Backup Unit (BBU) is designed to provide main power and uninterruptible backup power for the CS45-734-834-A0 public safety bi-directional amplifier (BDA) system.

The CS19-BBU-005 series provides an integrated power, battery charger, and alarm monitor system. The power system provides up to 252-Watt of power to the BDA. The alarm system has auxiliary connections to the BDA for remote monitoring.

Electronics are housed in a NEMA 4 enclosure, and batteries are housed in a NEMA 3R enclosure, manufacturer assembled.

Features:

• 24-hour backup capable
• AC input, 12 VDC output
• -30°C to +50°C operation
• On off AC/DC switch
• Watertight glands
• NFPA 1221/2524 compliant
• Power system UL 62368-1 listed

Applications:

• Indoor
• NFPA battery backup for BDAs
• Integrated power and alarm cable assembly for Westell BDA
