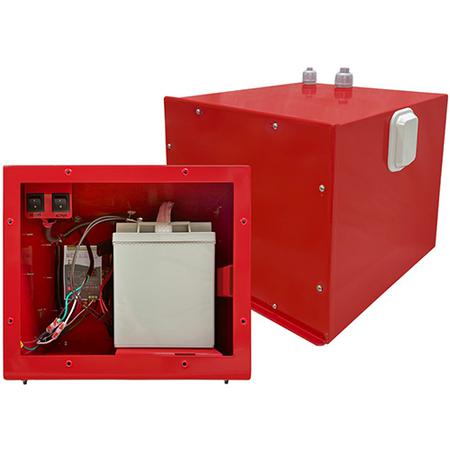

12/24-Hour Public Safety Battery Backup NEMA 4 Enclosure, Wall Mount

Westell’s wall mount battery backup unit (BBU) enclosure. This BBU is designed to provide main power and uninterruptible backup power for any 12 VDC public safety bi-directional amplifier (BDA) system. It can maintain full continuous operation of a BDA for 24-hours or more depending on the battery installed. It provides an integrated power, battery charger, and alarm monitor system

The power system provides up to 175-Watts of power to the BDA. While the alarm system has auxiliary connections to the BDA for remote monitoring.

Features:

• 24-hour backup capable
• NFPA 1221/2524 compliant
• AC input, 12 VDC output
• Power system UL 60950-1 listed
• NEMA 4 protected enclosure
• -30°C to +50°C operation
• On off AC/DC switch
• Optional emergency power off (EPO) switch

Applications:

• Indoor/outdoor
• NFPA battery backup for BDAs
• Integrated Power and alarm cable assembly for Westell BDA
• Watertight glands

Dimensions: (H x W x D) 17.5 x 16.6 x 15.5 in

Note: Lead-acid batteries are ordered separately and will determine the length of battery backup time.
