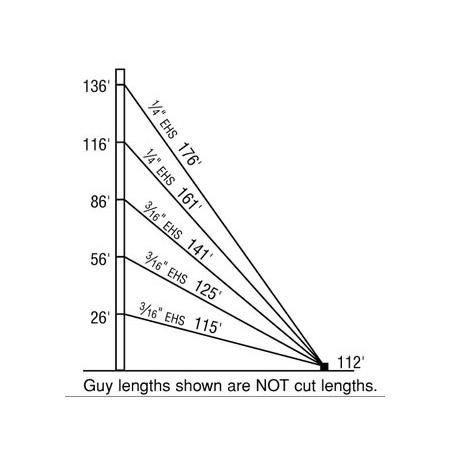

1200TLWD 140-ft Guyed Tower Kit

  • TESSCO SKU: 336248
  • QTY/UOM: 1 EACH
  • UPC: 888063362484
  • MFG PART #: C05-001-032

The Sabre Site Solutions C05-001-032 1200 TLWD Guyed Tower Kit comes complete with all of the hardware you need to construct a 140-ft guyed tower. All components are hot-dip galvanized for years of worry-free corrosion protection in even the harshest environments. Included with your complete C05-001-032 1200 TLWD Guyed Tower Kit:

(14) 1200 TLWD standard 10-ft tower sections
(9) Bolt assemblies, ½-in-13 × 1 ½-in
(126) Bolt assemblies, ½-in-13 × 1 ¾-in
(15) U-bolt assemblies, ½-in-13
(30) Bent bolt assemblies for guy bracket
(15) Jaw and eye turnbuckle, ½-in-13 × 12-in
(15) Shackle screws, ⅝-in
(12) Heavy-duty open thimbles, ⅜-in
(18) Heavy-duty open thimbles, ¼-in
(3) Wire rope clips, 3/16-in
(12) Dead-end sleeves (ice clips), ¼-in
(18) Dead-end sleeves (ice clips), 3/16-in
(12) Dead-end grips, ¼-in
(18) Dead-end grips, 3/16-in
(1116-ft) EHS guy strand, ¼-in
(1278-ft) EHS guy strand, 3/16-in
(3) Leg caps
(15) Guy brackets

Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application please fill out and submit a TESSCO Tower Design Questionnaire.

If you choose to purchase a tower from TESSCO (as a kit or in parts) without submitting a Tower Design Questionnaire, you do so at your own risk. TESSCO is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation.

Related Media

Technical Specs

  • Brace Connection
    Welded
  • Outer Anchor Block Design
    N/A
  • EPA, 90 MPH, No Ice
    15.6
  • Manufacturer
    Sabre
  • EPA, 90 MPH, 1/2 Ice
    0 in
  • EPA, 70 MPH, 1/2 Ice
    34.4 in
  • Tower Type
    Guyed
  • Sector Mount Compatible
    No
  • Platform Compatible
    No
  • Bracing Size
    3/8 in
  • Anchor Shaft
    031 (See 1200 TLWD Guyed Tower Anchor Shafts Attachment)
  • Climbing Application
    Incorporated into face
  • EPA, 70 MPH, No Ice
    27.2
  • Inner Anchor Block Design
    N/A
  • EPA, 110 MPH, 1/2 Ice
    0 in
  • Anchor Block Design
    A4 (See Anchor Block Design Attachment)
  • Bracing Type
    Solid Serpentine
  • Base Pier Foundation Design
    A (See Base Pier Foundation Design Attachment)
  • Load Location
    Top
  • Leg Type
    Tubular
  • Guy Strand Size (in)
    3/16 & 1/4
  • Inner Anchor Shaft
    N/A
  • EPA, 110 MPH, No Ice
    9.6
  • Leg Connection
    Three hole bolted flange
  • Qty/ Uom
    1 Each
  • Maximum Sidearm Length (ft)
    3
  • Outer Anchor Shaft
    N/A
  • Leg Size
    1.315 in
  • Tower Height
    140 ft
  • Engineering
    Pre-engineered
  • Type of Line Support
    N/A - Attach directly to bracing members
