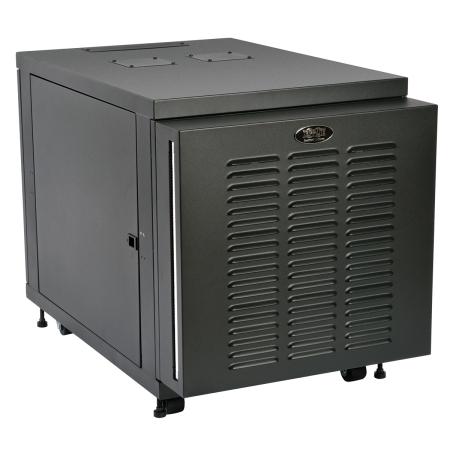

12U Rack Enclosure for Harsh Environments

  • TESSCO SKU: 552625
  • QTY/UOM: 1 EACH
  • UPC: 037332183439
  • MFG PART #: SR12UBFFD

TRIPP LITE's SR12UBFFD protects sensitive electronic equipment from harsh conditions that would overwhelm a typical rack enclosure. It is deal for use in factories, construction areas, utility plants, warehouses and other areas with limited space that are high in moisture, dust and debris. It can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. On the front door there is a built in dust filter. The filter is removable and can be replaced with standard furnace filters - they're simple, inexpensive and effective. To compensate for the added air resistance of the filters, there are 4 large, high performance intake fans in the front door. The fans pull air through the enclosure, from front to side. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19 in rackmount equipment. Supports up to 1000 lb of equipment.

Related Media

Technical Specs

  • Qty/ Uom
    1 Each
  • Finish
    Powder-Coated
  • Description
    SR12UBFFD protects sensitive electronic equipment from harsh conditions that would overwhelm a typical rack enclosure. It is deal for use in factories, construction areas, utility plants, warehouses and other areas with limited space that are high in moisture, dust and debris. It can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. On the front door there is a built-in dust filter. The filter is removable and can be replaced with standard furnace filters - they're simple, inexpensive and effective. To compensate for the added air resistance of the filters, there are 4 large, high performance intake fans in the front door. The fans pull air through the enclosure, from front to side. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 1000 lbs of equipment.
  • Outside Height
    26 in
  • Manufacturer
    Tripp Lite
  • Indoor/Outdoor
    Indoor
  • Outside Depth
    39 in
  • Outside Width
    24 in
  • Rack Units
    12
  • Construction Material
    Steel
  • Enclosure Mount Type
    Floor
  • Color
    Black
