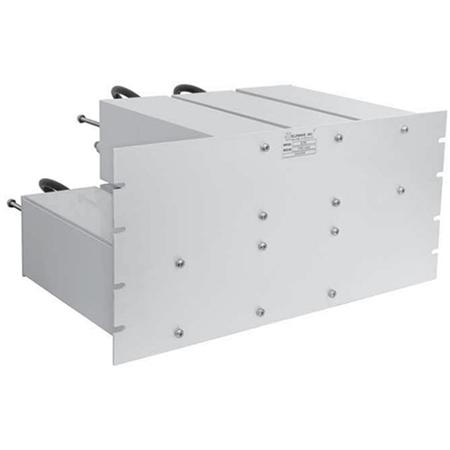

135 - 151 MHz Compact Pass-Reject Base Duplexer

Telewave's compact pass-reject base duplexer. This duplexer offers high performance in a compact design for the 135 - 151 MHz VHF band. Its custom-extruded 4-inch cavities allow for horizontal rack mounting.

It has three (3) pass-reject sections for the transmit and receive paths. These paths provide 80 dB isolation at 500 KHz with a 350-Watt power rating along with an insertion loss of 2.5 dB or less.

Dimensions: (H x W x D) 8.75 x 19 x 16 in | Weight: (Net) 37 lb

Note:

• It fits a standard 19-inch rack with an 8.75-inch rack height
• Factory tuned ask for TX and RX frequencies
