Sinclair Technologies GSA

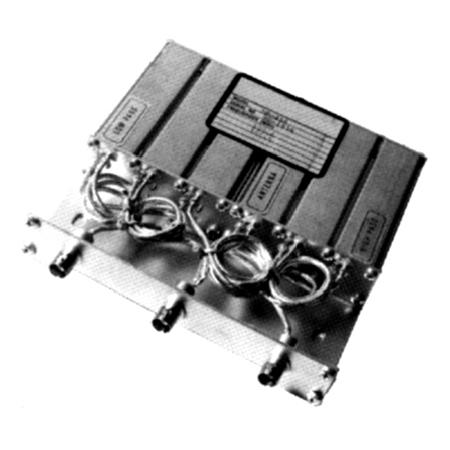

136-148 MHz Notch Reject Mobile Duplexer

  • TESSCO SKU: 484947
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: MR256B-1

SINCLAIR TECHNOLOGIES' MR256B-1 136 – 148 MHz mobile duplexer. Notch (reject) type. 6 cavities. 4.5 – 10 MHz separation. BNC Female connectors. *Factory tuned. Specify TX and RX.

Technical Specs

  • Insertion Loss (Rx/Ant-dB)
    1.5
  • Maximum Power Input
    50 W
  • RF Connectors
    BNC Female
  • Number of Cavities
    6
  • Item Height
    1.31 in
  • Minimum Isolation
    80 dB
  • Frequency Range
    136-160 MHz
  • Tuning Method
    Factory Tune
  • Maximum VSWR
    1.5:1
  • Item Width
    6-13/50 in
  • Operating Temperature Range
    -30-60 deg C
  • Item Length
    7 in
  • Insertion Loss (Tx/Ant-dB)
    1.5
  • Finish
    Gray
  • Qty/ Uom
    1 Each
  • Manufacturer
    Sinclair Technologies
  • Minimum Separation
    4.5
