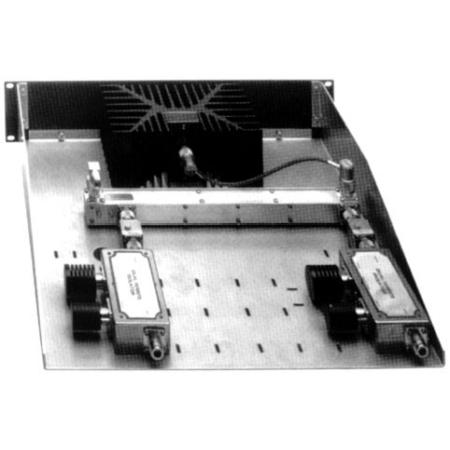

136-174 MHz 4 Channel Combiner, Hybrid Ferrite

  • TESSCO SKU: 70833
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: TC-2214

SINCLAIR TECHNOLOGIES' TC-2214 136 – 174 MHz transmit combiner. Four channels. Hybrid-ferrite type. Dual stage. 3 MHz maximum separately. 125 W. N Female. *Factory tuned

Technical Specs

  • Channel Separation
    0 MHz
  • Number of Channels
    4
  • Item Length
    15.63 in
  • Frequency Range
    132-174 MHz
  • Qty/ Uom
    1 Each
  • Item Width
    19 in
  • Minimum Isolation
    80 dB
  • Isolator Type
    Dual
  • Power Per Channel
    125 W
  • Manufacturer
    Sinclair Technologies
  • Tuning Method
    Factory Tune
  • Electrical Combiner Type
    Hybrid
  • Maximum VSWR
    1.25:1
  • Operating Temperature Range
    -30-60 deg C
  • RF Connectors
    N Female
  • Item Height
    10.5 in
