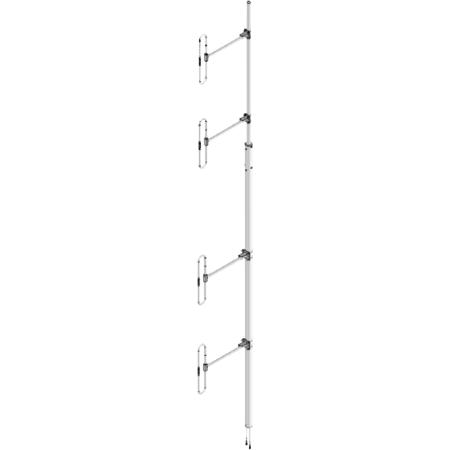

138-174 MHz 2 Dipole Dual Port Antenna, 4.5 dBd

  • TESSCO SKU: 247614
  • QTY/UOM: 1 EACH
  • UPC: 646444236898
  • MFG PART #: SD212DHF2P2LDFD00

SINCLAIR's SD212D-HF2P2LDF(D00B) 138 – 174 MHz two-dipole dual port antenna, 4.5 dBd, low PIM, heavy-duty, bidirectional with exceptionally wide bandwidth, top mount, 7/16 DIN Female connector

Technical Specs

  • Manufacturer
    Sinclair Technologies
  • Maximum Rated Wind Velocity
    145 mile/h
  • Vertical Beamwidth
    36 deg
  • Maximum VSWR
    1.5:1
  • Item Weight
    138 lb
  • Gain dBi
    6.6 dBi
  • Maximum Power
    300 W
  • Lightning Protection
    DC Ground
  • Qty/ Uom
    1 Each
  • Gain dBd
    4.5 dBd
  • Antenna Pattern
    Bidirectional
  • Specific Frequency
    138-174 MHz
  • Item Width
    43.3 in
  • Item Length
    328 in
  • Item Height
    5.8 in
  • Connector Placement
    Top
  • Polarization
    Vertical
  • RF Connectors
    7/16 DIN Female
