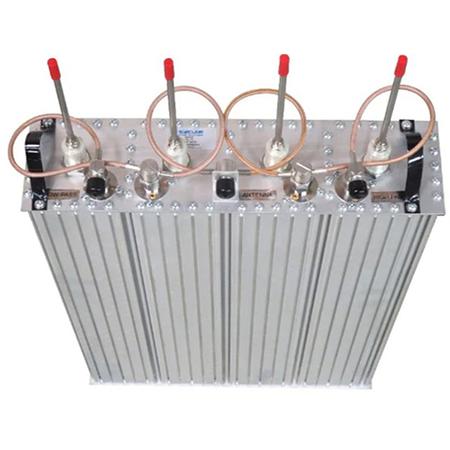

138 - 174 MHz 4 Cavity Duplexer
Sinclair Technologies

138 - 174 MHz 4 Cavity Duplexer

NCNR
TESSCO SKU: 63068
UPC: 63068
QTY/UOM: 1/each
MFG PART #: Q2220E

Sinclair's 138 - 174 MHz four (4) cavity duplexer.

Features:

  • 70 dB of isolation
  • Only 1.5 dB insertion loss at 500 KHz separation
  • Isolation of 80 dB at 3 MHz spacing typical

Note: TESSCO or field tune.

Technical Specs

Related Media

63068_Q2220E_Spec Sheet.pdf
