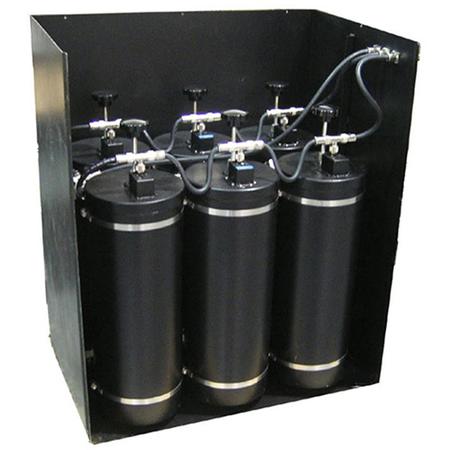

138 - 174 MHz 6 Cavity Bandpass Reject Duplexer with N Female
138 - 174 MHz 6 Cavity Bandpass Reject Duplexer with N Female
138 - 174 MHz 6 Cavity Bandpass Reject Duplexer with N Female
dbSpectra, Inc.
138 - 174 MHz 6 Cavity Bandpass Reject Duplexer with N Female
NCNR
TESSCO SKU: 606459
UPC: 606459
QTY/UOM: 1/each
MFG PART #: DB4062-WOC-B

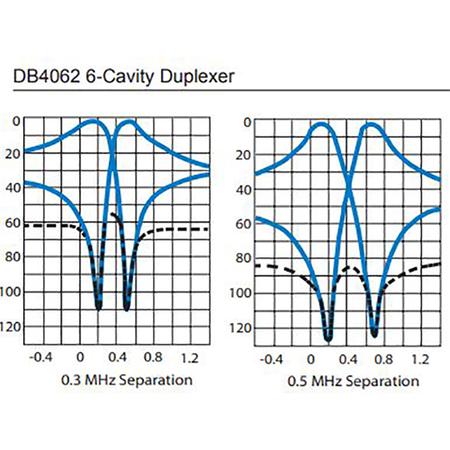

dbSPECTRA's 138 - 174 MHz 6 cavity bandpass reject duplexer. Model: DB4062-WOC (Without cabinet)-B. This duplexer has a minimum frequency separation of only 300 kHz (0.3 MHz). The design consists of 8-inch (dia) quarter-wave cavities. The invar rod for near zero expansion provides stability over a wide range of temperatures.

20RU (Rack Units) in size

Construction/Finish: Aluminum/Black
