Sinclair Technologies GSA

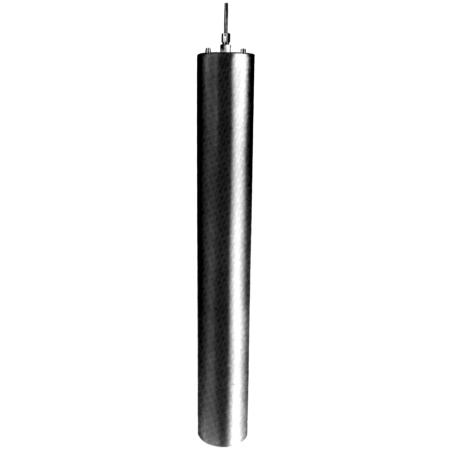

138-174 MHz Pass-Reject Cavity

  • TESSCO SKU: 57420
  • QTY/UOM: 1 EACH
  • UPC: 729198574208
  • MFG PART #: FQ20107-3

SINCLAIR TECHNOLOGIES' FQ20107-3 138 – 174 MHz pass-reject cavity. 7 in diameter, 350 W, 250 kHz minimum separation, N Female connector. *TESSCO tuned or field tuned

Related Media

Technical Specs

  • Maximum VSWR
    1.5:1
  • Cavity Size
    7 in
  • Number of Cavities
    1
  • Qty/ Uom
    1 Each
  • Maximum Size (HxWxD)
    32.5" x 7" x 7" (+Rod)
  • Insertion Loss Range
    0.3-1.0 dB
  • Manufacturer
    Sinclair Technologies
  • Filter Type
    Pass-Reject
  • Frequency Range
    150-174 MHz
  • Minimum Separation
    0.25
  • RF Connectors
    N Female
  • Maximum Power Input
    350 W
  • Tuning Method
    TESSCO or Field Tune
