Sinclair Technologies GSA

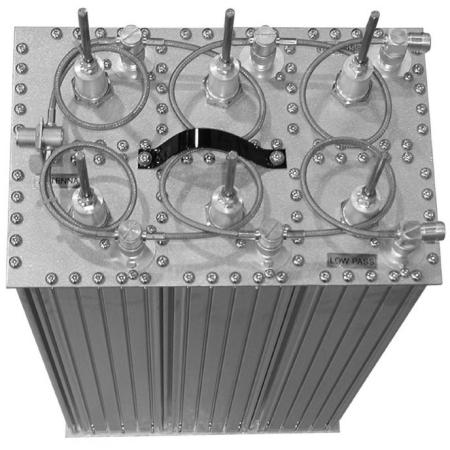

138-174 MHz Pass Reject Duplexer

  • TESSCO SKU: 11461
  • QTY/UOM: 1 EACH
  • UPC: 729198114619
  • MFG PART #: Q2330E

SINCLAIR 138-174 MHz Duplexer. Pass- reject type. 6 cavity. 350W. 0.5 MHz min. sep. 1.4 dB loss. 85dB isolation. *TESSCO tune or field tune

Technical Specs

  • Tuning Method
    TESSCO or Field Tune
  • Insertion Loss (Tx/Ant-dB)
    1.4
  • Qty/ Uom
    1 Each
  • Item Width
    19 in
  • Frequency Range
    138-174 MHz
  • Number of Cavities
    6
  • Insertion Loss (Rx/Ant-dB)
    1.4
  • Minimum Separation
    0.5
  • Item Height
    8.37 in
  • Item Length
    30-3/10 in
  • Manufacturer
    Sinclair Technologies
  • Finish
    Alodined Aluminum
  • Minimum Isolation
    85 dB
  • RF Connectors
    N Female
  • Cavity Size
    4 in
  • Maximum VSWR
    1.5:1
  • Maximum Power Input
    350 W
  • Operating Temperature Range
    -40-60 deg C
