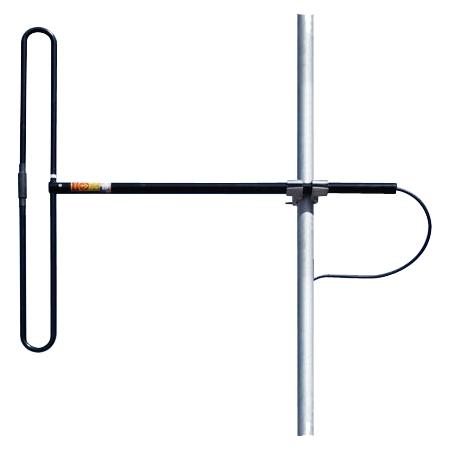

138-174MHz 3dB 2 Element Dipole, 2 Degree Downtilt

  • TESSCO SKU: 263092
  • QTY/UOM: 1 EACH
  • UPC: 646444434423
  • MFG PART #: ANT150D3-2DT

TELEWAVE's 138 – 174 MHz two-bay exposed dipole array. Adjustable pattern, 3 dB omni / 5.6 dB offset, 500 W. Includes harness with N Male termination. Mast not included. 2 deg. downtilt.

Technical Specs

  • Maximum VSWR
    1.5:1
  • Polarization
    Vertical
  • Gain dBd
    6 dBd, 3 dBd
  • Maximum Power
    500 W
  • Lightning Protection
    DC Ground
  • Maximum Rated Wind Velocity
    175 mile/h
  • Qty/ Uom
    1 Each
  • Manufacturer
    Telewave, Inc.
  • Gain dBi
    5.1 dBi, 8.1 dBi
  • Specific Frequency
    138-174 MHz
  • RF Connectors
    N Male
