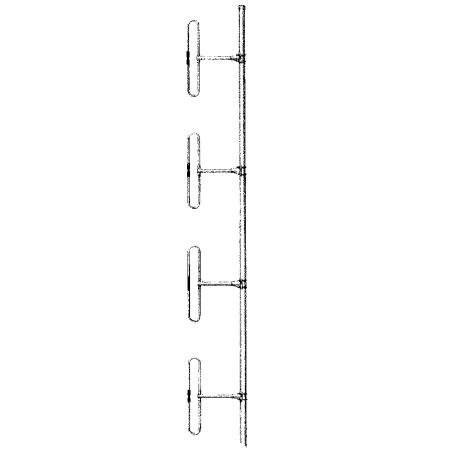

138-174MHz 8.5dB 4 Element Dipole Antenna,1/2 Wave

  • TESSCO SKU: 52513
  • QTY/UOM: 1 EACH
  • UPC: 729198525132
  • MFG PART #: SD214-SF2P2SNM

SINCLAIR's SD214-SF2P2SNM 138 – 174 MHz four dipole antenna 8 – 8.5 dB offset gain. 300 W. Includes harness with N Male termination. Internal to mast. 1/2 wave spacing. Order mounting clamps.

Technical Specs

  • Item Height
    240 in
  • Maximum VSWR
    1.5:1
  • Item Width
    4 in
  • Manufacturer
    Sinclair Technologies
  • RF Connectors
    N Male
  • Item Length
    42.5 in
  • Polarization
    Vertical
  • Tuned Frequency (MHz)
    138-174
  • Gain dBi
    10.1 dBi
  • Antenna Pattern
    Bidirectional
  • Item Weight
    45.5 lb
  • Gain dBd
    8 dBd
  • Connector Placement
    Pigtail
  • Specific Frequency
    138-174 MHz
  • Maximum Rated Wind Velocity
    130 mile/h
  • Vertical Beamwidth
    17 deg
  • Type of Hardware Included
    None
  • Jumper Included
    Yes
  • Qty/ Uom
    1 Each
  • Maximum Power
    300 W
  • Lightning Protection
    DC Ground
