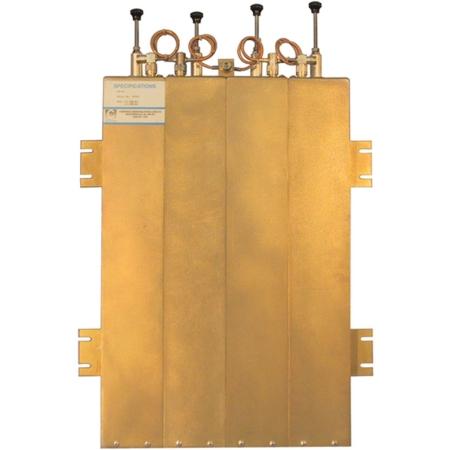

138-174MHz Pass/Reject Six 4" Cavity Duplexer

  • TESSCO SKU: 304556
  • QTY/UOM: 1 EACH
  • UPC: 888063045561
  • MFG PART #: 66-13-46

COMPROD's 66-13-46 138 – 174 MHz pass / reject duplexer 500 kHz minimum spacing. 350 W, 1.5 dB insertion loss. 85 dB isolation. N Female termination. TESSCO tuned. Specify TX and RX frequency.

Technical Specs

  • Minimum Isolation
    85 dB
  • Number of Cavities
    6
  • Maximum VSWR
    1.5:1
  • Item Length
    9 in
  • Insertion Loss (Tx/Ant-dB)
    1.5
  • Item Height
    23 in
  • Finish
    Gold alodine
  • Frequency Range
    144-174 MHz
  • Insertion Loss (Rx/Ant-dB)
    1.5
  • Manufacturer
    Comprod Inc.
  • Cavity Size
    4 in
  • Qty/ Uom
    1 Each
  • Minimum Separation
    0.5
  • Item Width
    36 in
  • Maximum Power Input
    350 W
  • Tuning Method
    TESSCO or Field Tune
