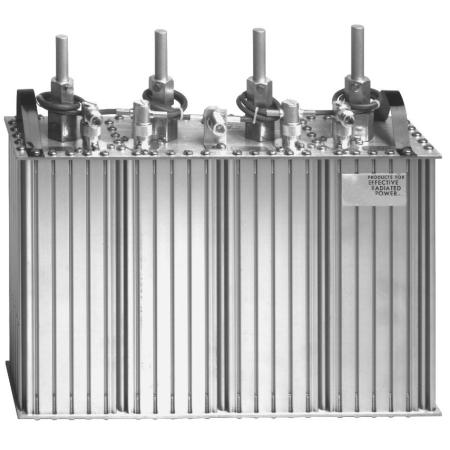

144-165 MHz Pass Reject Duplexer

  • TESSCO SKU: 472684
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: Q-2222E-1

SINCLAIR TECHNOLOGIES' Q-2222E-1 144 – 165 MHz duplexer. Pass-reject type. 4 cavity. 120 W. 3 MHz minimum separately. 0.8 dB loss. 80 dB isolation. N Female. *Factory tuned (SPECIFY FREQUENCIES).

Technical Specs

  • Item Height
    4.17 in
  • Minimum Isolation
    80 dB
  • Qty/ Uom
    1 Each
  • RF Connectors
    N Female
  • Tuning Method
    Factory Tune
  • Minimum Separation
    3
  • Maximum VSWR
    1.5:1
  • Item Width
    19 in
  • Maximum Power Input
    120 W
  • Item Length
    17 in
  • Insertion Loss (Rx/Ant-dB)
    0.8
  • Manufacturer
    Sinclair Technologies
  • Number of Cavities
    4
  • Frequency Range
    144-165 MHz
  • Insertion Loss (Tx/Ant-dB)
    0.8
