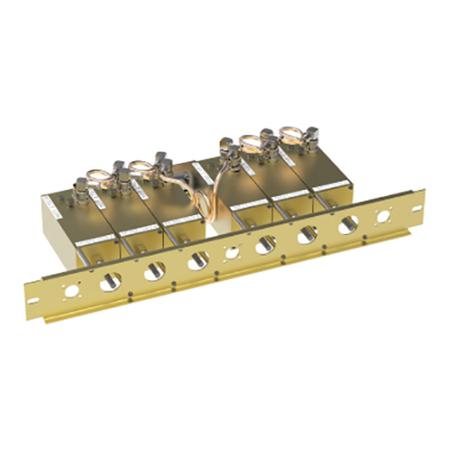

144 - 174 MHz 2 in 6 Cavity Duplexer with N Female Connectors

Comprod's 144 - 174 MHz six (6) cavity duplexer with N Female connectors. This 2-inch cavity duplexer is ideal for compact and high isolation installations. The filter is designed for the combination of two frequencies that require extra isolation, or they can be used as efficient preselectors.

Specifications:

• 100 W continuous input power
• 1.5 dB insertion loss
• 80/90 dB channel isolation
• 1.3:1 VSWR
• Each cavity is temperature compensated for operation between -40ºC to +60ºC
• Each cavity also has a gold alodine finish, silver-plated loops, and silver plated tuning rods

Mounting: 19-inch Rack Mount

Dimensions: (H x W x D) 5.25 x 19 x 7.25 in

Note:

• The antenna can either be tuned by Comprod or shipped untuned for tuning in the field
