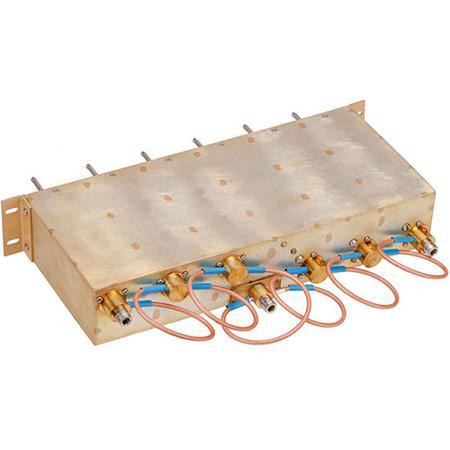

144 - 174 MHz 6-Cavity Pass-Notch Antenna Duplexer, N Female Connectors, Factory Tuned

EMR Corporation’s 144 - 174 MHz six-cavity pass-notch antenna duplexer with N Female connectors and a yellow chem film finish. The duplexer is housed in a 19-inch EIA rack-mount chassis and occupies 2 RU of rack space.

Specifications:

• 3 MHz minimum offset
• 50 Ohm
• 100-Watt maximum input power
• 1.25:1 VSWR

Features:

• High Q Square cavities
• Space saving design
• Low insertion loss

Dimensions and Weight:

• 3.5 x 19.25 x 14 in (HxWxD)
• 8.2 lbs (Net)
