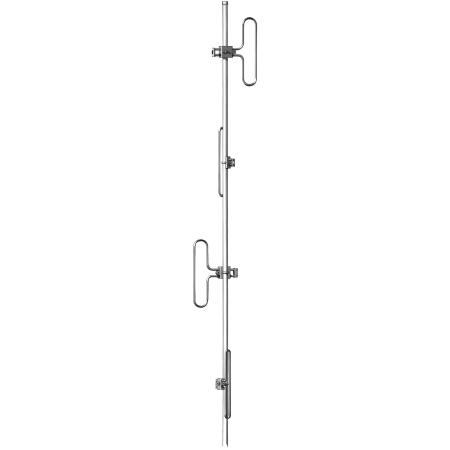

147-157 MHz 6dB 4 Element Dipole Antenna

  • TESSCO SKU: 551897
  • QTY/UOM: 1 EACH
  • UPC: 729198887636
  • MFG PART #: SD224-SF4PASNM

SINCLAIR's SD224-SF4PASNM 147 – 157 MHz four dipole exposed array antenna. 6 dB omni / 9 dB offset pattern. Incluses harness with N Male termination and mounting hardware.

Related Media

Technical Specs

  • Type of Hardware Included
    Clamp set
  • Jumper Included
    Yes
  • Horizontal Beamwidth
    170 deg, 360 deg
  • Qty/ Uom
    1 Each
  • Maximum Power
    300 W
  • Lightning Protection
    DC Ground
  • Maximum Rated Wind Velocity
    105 mile/h
  • Vertical Beamwidth
    16 deg
  • Antenna Pattern
    Adjustable
  • Maximum VSWR
    1.5:1
  • Manufacturer
    Sinclair Technologies
  • RF Connectors
    N Male
  • Polarization
    Vertical
  • Gain dBi
    8.1 dBi, 11.1 dBi
  • Gain dBd
    6 dBd, 9 dBd
  • Specific Frequency
    147-157 MHz
