Sinclair Technologies

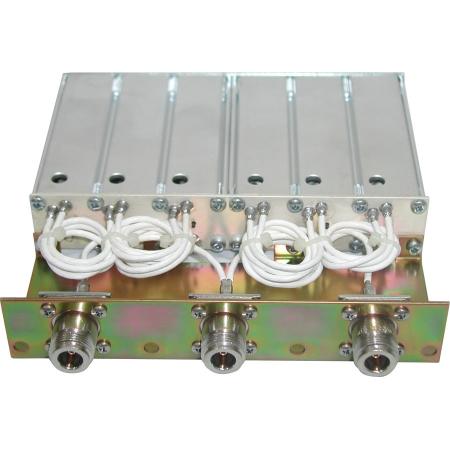

148-160 MHz Notch Reject Mobile Duplexer

  • TESSCO SKU: 454667
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: MR256N-2

SINCLAIR TECHNOLOGIES' MR256N-2 148 – 160 MHz mobile duplexer. Notch (reject) type. 6 cavities. 4.5 – 10 MHz separation. N Female. *Factory tuned*

Technical Specs

  • Insertion Loss (Rx/Ant-dB)
    1.5
  • Maximum Power Input
    50 W
  • RF Connectors
    N Female
  • Number of Cavities
    6
  • Item Height
    1.31 in
  • Minimum Isolation
    80 dB
  • Frequency Range
    148-160 MHz
  • Tuning Method
    Factory Tune
  • Maximum VSWR
    1.5:1
  • Item Width
    6-13/50 in
  • Operating Temperature Range
    -30-60 deg C
  • Item Length
    7 in
  • Insertion Loss (Tx/Ant-dB)
    1.5
  • Qty/ Uom
    1 Each
  • Manufacturer
    Sinclair Technologies
  • Minimum Separation
    4.5
