Telewave, Inc. GSA

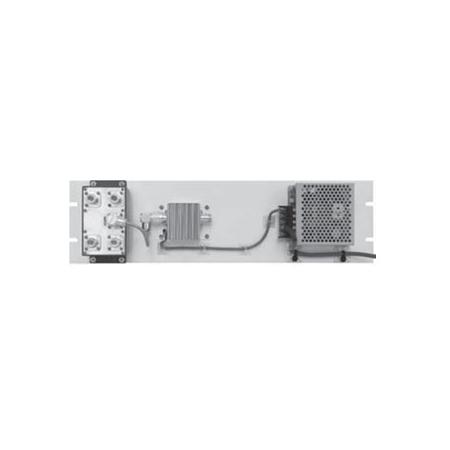

148-174 MHz 4 Port Receiver Distribution Panel

  • TESSCO SKU: 517629
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: TWR4-150

TELEWAVE's TWR4-150 148 – 174 MHz receiver distribution panel provides four (4) isolated 50 Ohm receiver outputs from one input, in a compact package. The antenna port is tuned with a matching network to insure a balanced input. Please specify the exact frequencies when ordering.

Related Media

Technical Specs

  • Item Weight
    4 lb
  • Number of Channels
    4
  • RF Output Connector
    N Female
  • Qty/ Uom
    1 Each
  • Item Width
    19 in
  • Specific Frequency
    148-174 MHz
  • Ask Customer
    What are the exact frequencies?
  • Item Length
    5.25 in
  • Bandwidth
    36 MHz
  • Tuning Method
    Factory Tune
  • Manufacturer
    Telewave, Inc.
  • DC Input Voltage Range
    12-24 V
  • RX/RX Isolation
    25 dB
  • Item Height
    3 in
  • 3rd Order Intercept
    36 dBm
  • AC Input Voltage Range
    100-240 V
  • Maximum VSWR
    1.3:1
  • Noise Figure
    2.5 dB
  • RF Input Connector
    N Female
