Sinclair Technologies GSA

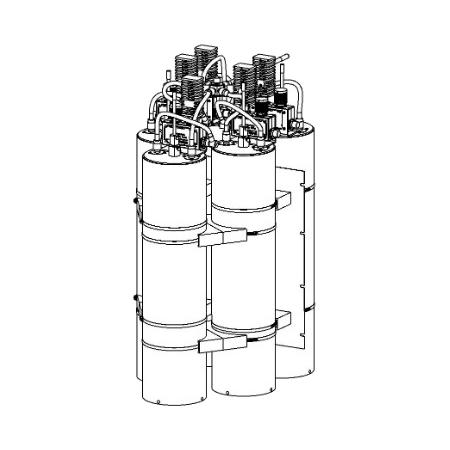

148-174 MHz 5 Channel Combiner, 7" cavity-ferrite

  • TESSCO SKU: 215227
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: TJ2215-3

Sinclair TJ2215-3 148-174 MHz 5 Channel Combiner, 7" cavity-ferrite, dual stage isolator. Sinclair’s ‘TJ2’ series cavity ferrite transmitter combiners are available in 2 or more channel configurations for use in systems from 132-174 MHz. Each channel on these combiners includes a low-loss single or dual-stage isolator and Sinclair-developed High ‘Q’ bandpass cavity filter. The 'TJ2’ series utilizes very high ‘Q’ quarter wavelength cavities, and is especially suitable for close channel separations, typically 150 kHz. *Factory Tuned:

Technical Specs

  • Maximum VSWR
    1.25:1
  • Item Height
    21 in
  • Item Length
    32 in
  • Item Width
    19 in
  • Channel Separation
    .15 MHz
  • Operating Temperature Range
    -30-60 deg C
  • RF Connectors
    N Female
  • Electrical Combiner Type
    Cavity
  • Power Per Channel
    125 W
  • Qty/ Uom
    1 Each
  • Tuning Method
    Factory Tuned
  • Number of Channels
    5
  • Frequency Range
    148-174 MHz
  • Manufacturer
    Sinclair Technologies
