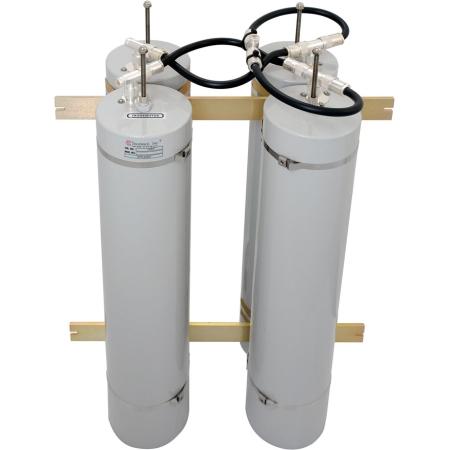

148-174 MHz Band-Pass Duplexer

  • TESSCO SKU: 59508
  • QTY/UOM: 1 EACH
  • UPC: 729198595081
  • MFG PART #: TPCD-1554

TELEWAVE's TPCD-1554 148 – 174 MHz bandpass duplexer. 350 W, 4 MHz frequency separation. 1 dB insertion loss, 55 dB isolation. N Female. *TESSCO tuned or field tuned

Related Media

Technical Specs

  • Cavity Size
    5 in
  • Insertion Loss (Tx/Ant-dB)
    1.0
  • Operating Temperature Range
    -30-70 deg C
  • Tuning Method
    TESSCO or Field Tune
  • Insertion Loss (Rx/Ant-dB)
    1.0
  • Minimum Separation
    4
  • Minimum Isolation
    58 dB
  • Frequency Range
    148-174 MHz
  • Item Width
    19 in
  • Maximum Power Input
    350 W
  • Number of Cavities
    4
  • RF Connectors
    N Female
  • Manufacturer
    Telewave, Inc.
  • Item Height
    28 in
  • Finish
    Gray
  • Maximum VSWR
    1.5:1
  • Item Length
    28 in
  • Qty/ Uom
    1 Each
