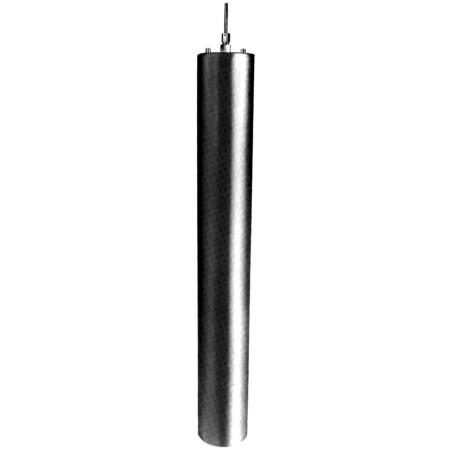

148-174 MHz Bandpass Cavity

  • TESSCO SKU: 35988
  • QTY/UOM: 1 EACH
  • UPC: 729198359881
  • MFG PART #: FP20107-3

SINCLAIR's FP20107-3 148 – 174 MHz bandpass cavity. 7 in diameter. 400 W at 0.5 dB loss. N Female connectors. *TESSCO tuned or field tuned

Related Media

Technical Specs

  • RF Connectors
    N Female
  • Number of Cavities
    1
  • Filter Type
    Bandpass
  • Manufacturer
    Sinclair Technologies
  • Qty/ Uom
    1 Each
  • Frequency Range
    148-174 MHz
  • Insertion Loss Range
    0.5-3.0 dB
  • Maximum Power Input
    400 W
  • Maximum Size (HxWxD)
    32.5" x 7" x 7" (+Rod)
  • Tuning Method
    TESSCO or Field Tune
  • Maximum VSWR
    1.5:1
  • Cavity Size
    7 in
