Telewave, Inc.

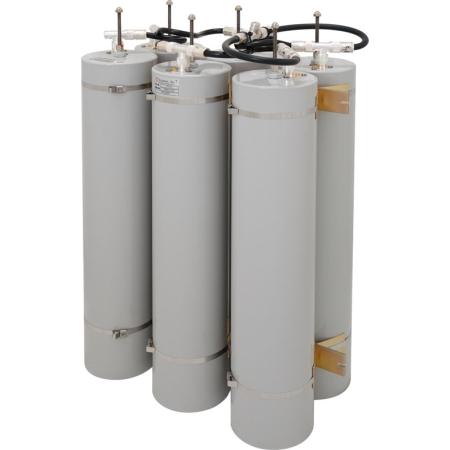

148-174 MHz Pass Duplexer

  • TESSCO SKU: 97901
  • QTY/UOM: 1 EACH
  • UPC: 729198979010
  • MFG PART #: TPCD-1556

TELEWAVE's TPCD-1556 148 – 174 MHz bandpass duplexer. 350 W, 2 MHz frequency separation. 1.5 dB loss, 63 dB isolation, N Female termination. *TESSCO tuned or field tuned

Related Media

Technical Specs

  • Item Length
    11 in
  • Manufacturer
    Telewave, Inc.
  • Cavity Size
    5 in
  • Insertion Loss (Tx/Ant-dB)
    1.5
  • Operating Temperature Range
    -30-70 deg C
  • Insertion Loss (Rx/Ant-dB)
    1.5
  • Tuning Method
    TESSCO or Field Tune
  • Minimum Separation
    2
  • Minimum Isolation
    70 dB
  • Frequency Range
    148-174 MHz
  • Item Width
    19 in
  • Maximum Power Input
    350 W
  • Number of Cavities
    6
  • RF Connectors
    N Female
  • Item Height
    28 in
  • Finish
    Gray
  • Maximum VSWR
    1.5:1
  • Qty/ Uom
    1 Each
