Amphenol Procom Inc.

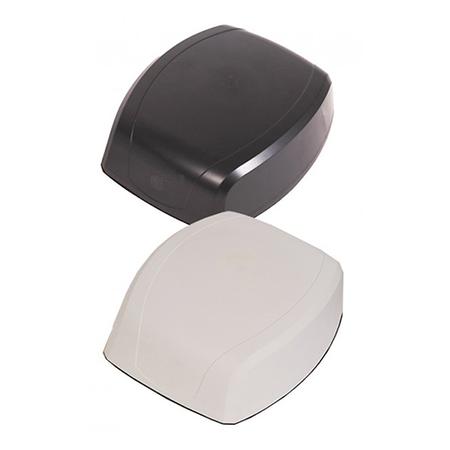

15-in-1 ProNexus Plus 8x 5G, 6x Wi-Fi 6E, and 1x GNSS Dome Antenna in White
TESSCO SKU: 609367
UPC: 609367
QTY/UOM:
1/each
MFG PART #: ProNexusPlus-W-G1-L8-W6-P5U-S/S/RP-S
Sign In or Register
for preferred pricing!
Added To Cart
Amphenol Procom's ProNexus Plus is a 8x8 MIMO mobile antenna covering up to 7.2 GHz. This antenna is equipped with a 1-foot pigtail and 16-foot LL-195 extension. It is a next generation antenna for fixed and mobile applications masterfully engineered for 5G and Gigabit Class LTE routers.
This cutting-edge 15-in-1 antenna redefines the standards for speed and connectivity within the smallest footprint. It enables maximization of spectral efficiency and minimizing installation costs by reducing the need for additional antennas.
Features:
- In-built 8x8 MIMO LTE antenna (617 – 960, 1710 - 7200 MHz) with 6x6 MIMO Wi-Fi 6E (2.4/4.9 - 7.2 GHz), GNSS antenna for GPS L1, GLONASS, Beidou and Galileo
- Provides antennas for multiple technologies and multiband routers
- Full hemispherical coverage for the GNSS antenna
- Right-Hand circular polarization
- Built-in high gain, low noise amplifier
- 3 - 15 VDC for GNSS supply
- DC supply via GNSS RF connector
- ECE R118.02 approved cable
- IP69 Ingress protection
- IK10 rated enclosure
