Sinclair Technologies GSA

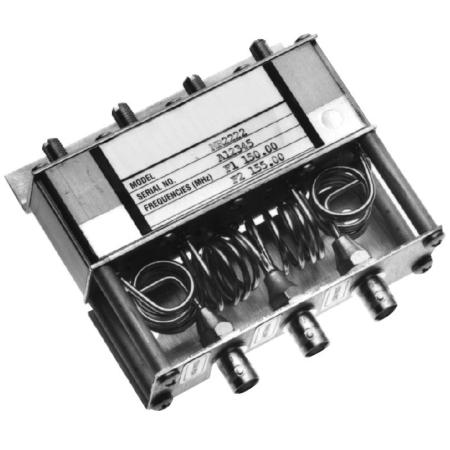

150-174 MHz Notch Reject Mini-Duplexer

  • TESSCO SKU: 351281
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: MR2222B-2-2

SINCLAIR TECHNOLOGIES' MR2222B-2-2 150 – 174 MHz mini-duplexer. Notch (reject) type. Four cavity. 5.5 – 10 MHz separation. BNC Female connectors. *Factory tuned

Technical Specs

  • Operating Temperature Range
    -30-60 deg C
  • Maximum VSWR
    1.5:1
  • Insertion Loss (Rx/Ant-dB)
    1.5
  • Number of Cavities
    4
  • Minimum Separation
    5.5
  • Item Width
    4-3/10 in
  • Frequency Range
    150-174 MHz
  • Manufacturer
    Sinclair Technologies
  • Minimum Isolation
    50 dB
  • Insertion Loss (Tx/Ant-dB)
    1.5
  • Maximum Power Input
    50 W
  • Item Length
    4.06 in
  • RF Connectors
    BNC Female
  • Item Height
    1-3/10 in
  • Qty/ Uom
    1 Each
  • Tuning Method
    Factory Tune
