Sinclair Technologies GSA

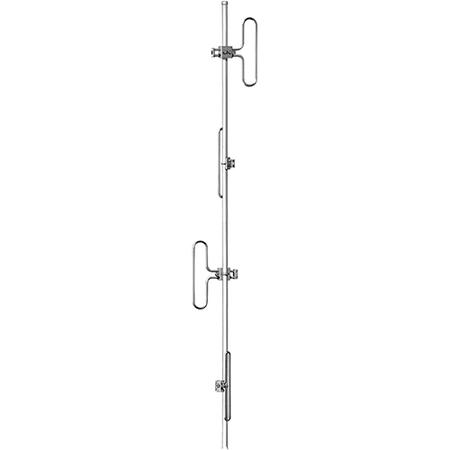

152-162 MHz 6dB 4 Element Dipole Antenna

  • TESSCO SKU: 16474
  • QTY/UOM: 1 EACH
  • UPC: 729198164744
  • MFG PART #: SD224-SF5PASNM

SINCLAIR 152-162 MHz four dipole exposed array antenna. 6dB omni/9dB offset pattern. Includes harness w/N male termination and mounting hardware.

Technical Specs

  • Specific Frequency
    152-162 MHz
  • Maximum Rated Wind Velocity
    105 mile/h
  • Maximum VSWR
    1.5:1
  • Item Weight
    35 lb
  • Jumper Included
    Yes
  • Horizontal Beamwidth
    170 deg, 360 deg
  • Gain dBd
    9 dBd, 6 dBd
  • Gain dBi
    11.1 dBi, 8.1 dBi
  • Maximum Power
    300 W
  • Item Height
    216 in
  • Qty/ Uom
    1 Each
  • Lightning Protection
    DC Ground
  • Vertical Beamwidth
    16 deg
  • Item Width
    4.5 in
  • Manufacturer
    Sinclair Technologies
  • RF Connectors
    N Male
  • Item Length
    14 in
  • Tuned Frequency (MHz)
    152-162
  • Polarization
    Vertical
  • Antenna Pattern
    Adjustable
  • Connector Placement
    Pigtail
  • Type of Hardware Included
    Clamp set
