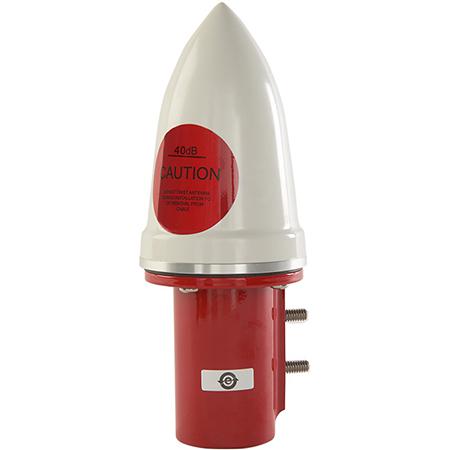

1575 MHz 3.5 dBic GPS Timing Reference Antenna with 40 dB LNA

PCTEL's 1575 MHz 3.5 dBic GPS timing reference antenna. This antenna features a 40 dB low noise amplifier (LNA) and narrowband high-rejection filtering specifically designed to support long-lasting, trouble-free deployments in congested cell-site applications with severe interference around the GPS L1 frequency.

The proprietary quadrifiliar helix design, coupled with multi-stage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas. While the unique proprietary radome (white) shape sheds water and ice, and eliminates bird perching problems.

One (1) Connector:

• N Female (Bottom Fed)

Notes:

• The mounting hardware is not included
• Meets RoHS compliance
