Sinclair Technologies GSA

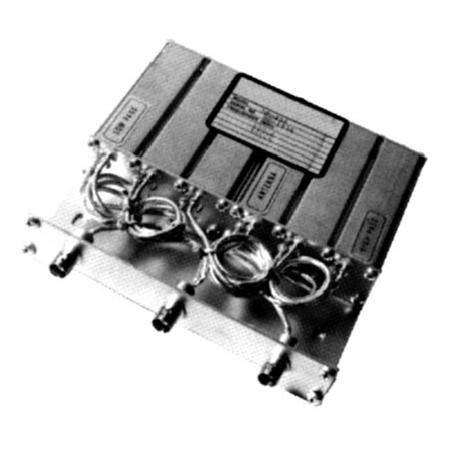

160-174 MHz Notch Reject Mobile Duplexer

  • TESSCO SKU: 79521
  • QTY/UOM: 1 EACH
  • UPC: 729198795214
  • MFG PART #: MR256B-3

SINCLAIR TECHNOLOGIES' MR256B-3 160 – 174 MHz mobile duplexer. Notch (reject) type. 6 cavities. 5 Mhz separation. BNC Female connectors. *TESSCO tuned or field tuned.

Technical Specs

  • Maximum Power Input
    50 W
  • Minimum Isolation
    80 dB
  • Item Width
    6-13/50 in
  • Finish
    Gray
  • Item Length
    7 in
  • Maximum VSWR
    1.5:1
  • RF Connectors
    BNC Female
  • Number of Cavities
    6
  • Insertion Loss (Tx/Ant-dB)
    1.5
  • Item Height
    1.31 in
  • Frequency Range
    160-174 MHz
  • Tuning Method
    TESSCO or Field Tune
  • Operating Temperature Range
    -30-60 deg C
  • Qty/ Uom
    1 Each
  • Manufacturer
    Sinclair Technologies
  • Minimum Separation
    5
  • Insertion Loss (Rx/Ant-dB)
    1.5
